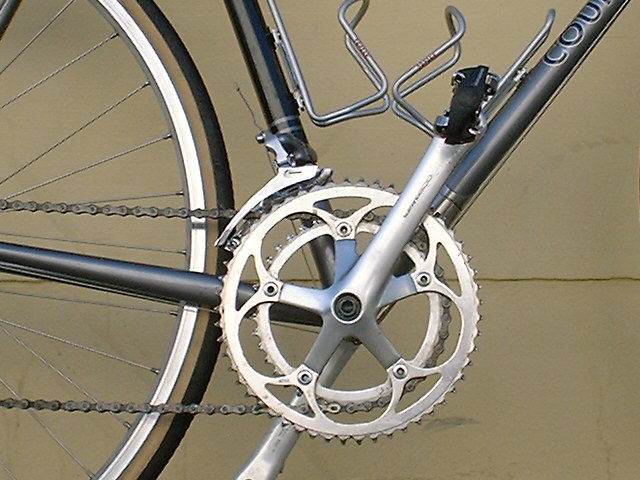

bottom_bracket
cockpit
drive_side
front_brake

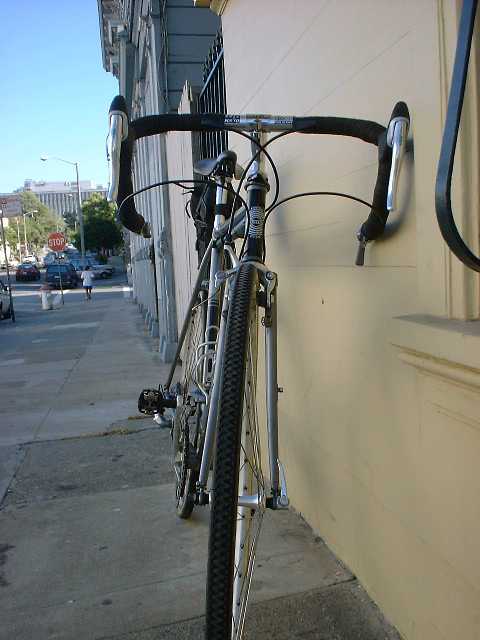

front_profile
rear_brake
seat_cluster

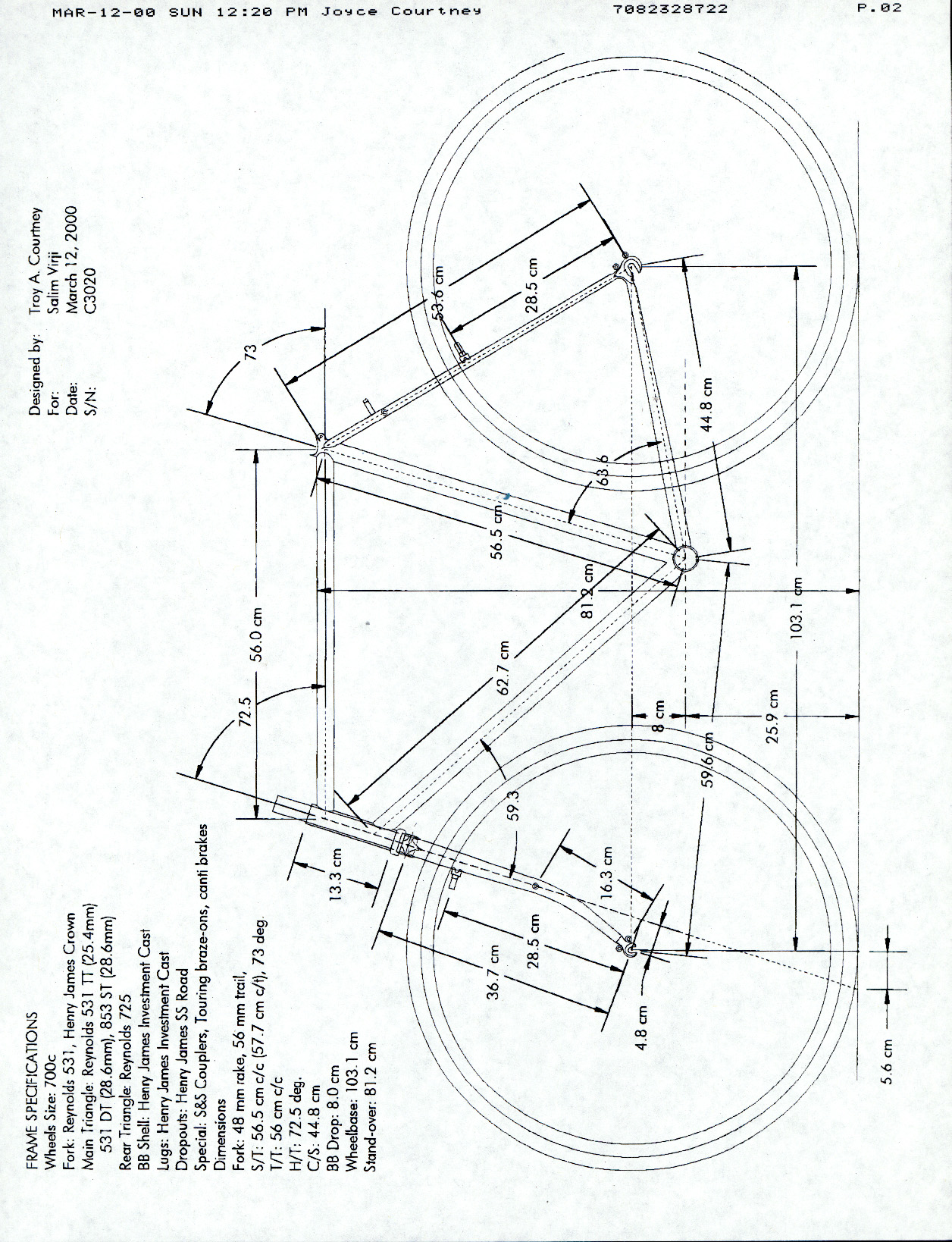

spec
handlebars ITM 44cm double-groove
stem ITM 26.0
shifters Shimano bar-end, 8-speed
front brake Shimano RX100 standard-reach, dual-pivot
brake levers Shimano RSX
front wheel Mavic 231, 36h, laced 3x
front hub ?
front tyre Avocet Cross 30mm
front derailleur Shimano 600
bottom bracket Shimano UN72 118 (?)
crankset Shimano 600, 53/39; 175mm cranks
seatpost Ritchey Logic
seat hfs
rear brake Shimano RX100 standard-reach, dual-pivot
rear wheel Mavic 231, 36h, laced 3x
rear hub ?
rear tyre Avocet Cross 30mm
cassette Shimano 8sp, 12-26
rear derailleur Shimano 600
The frame, in parts, before assembly.

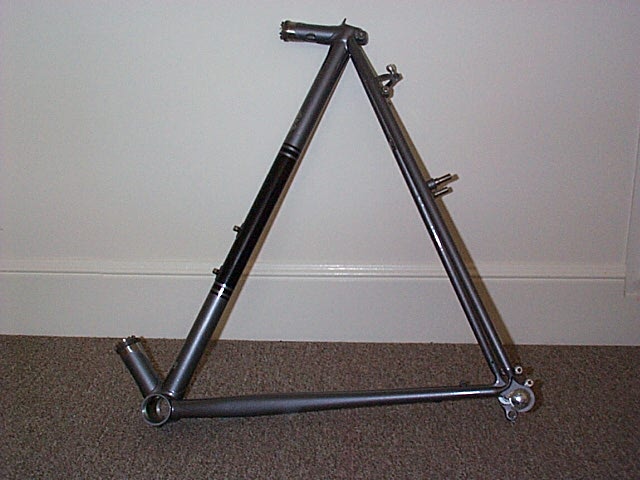

The courtney, picture 01061.JPG
The courtney, picture 01064.JPG

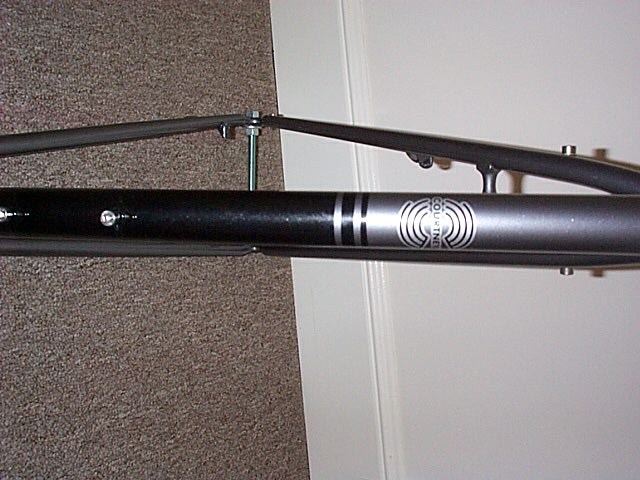

The courtney, picture 01065.JPG

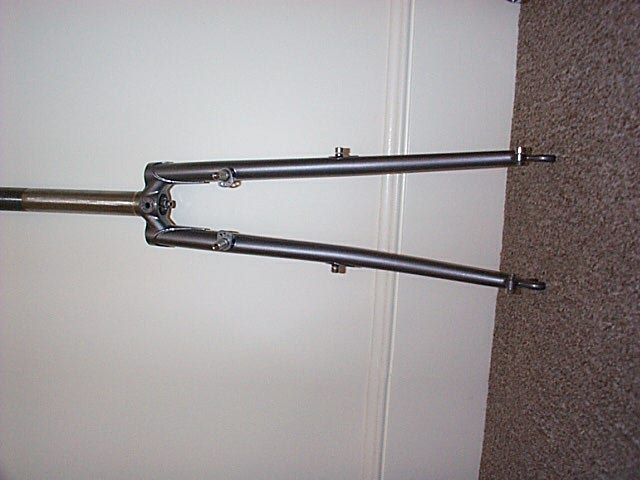

The courtney, picture 01066.JPG

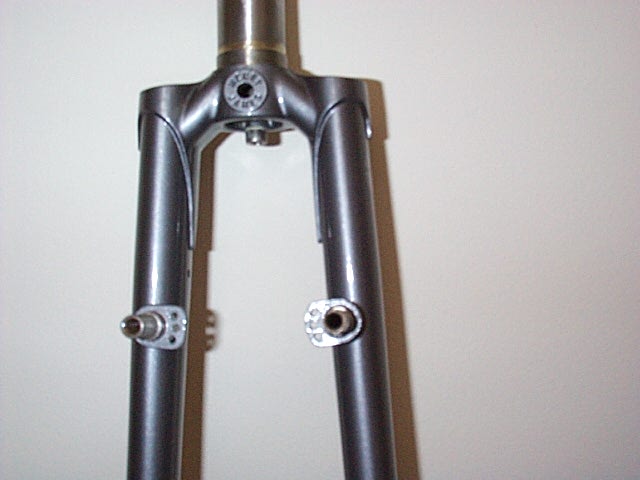

The courtney, picture 01067.JPG

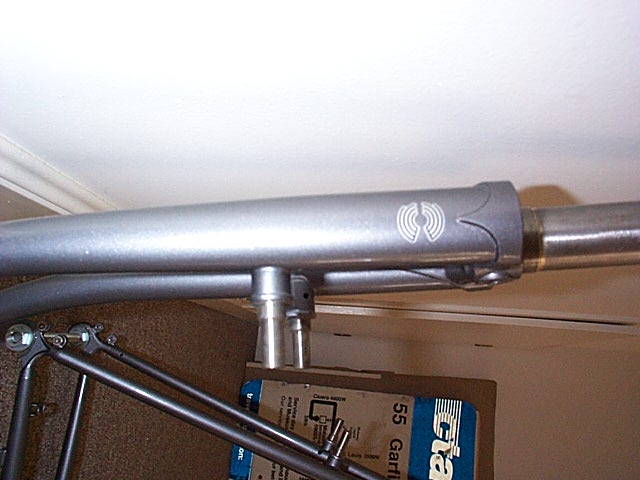

The courtney, picture 01068.JPG

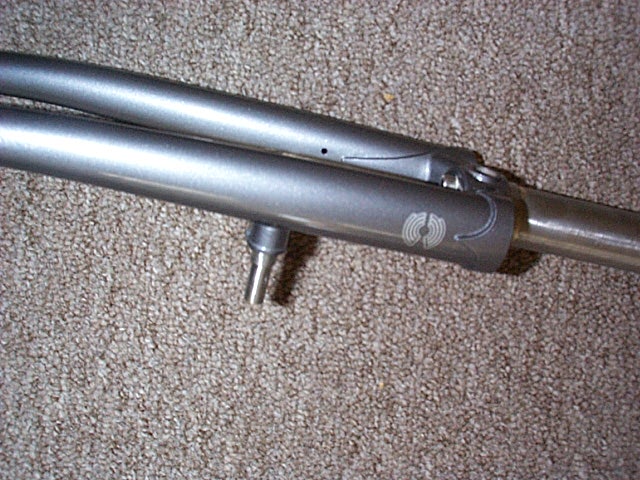

The courtney, picture 01069.JPG

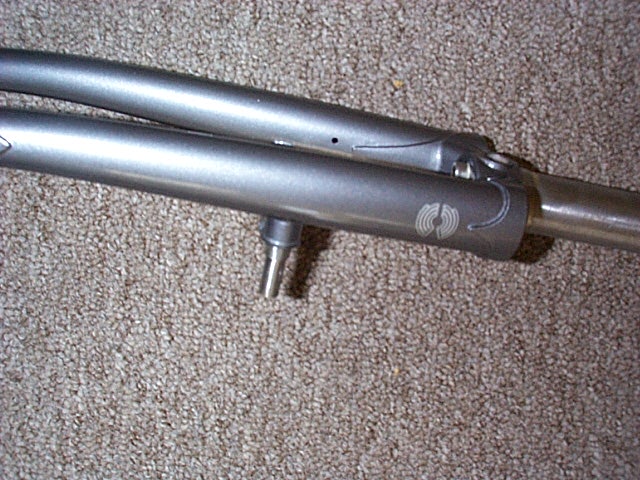

The courtney, picture 01070.JPG

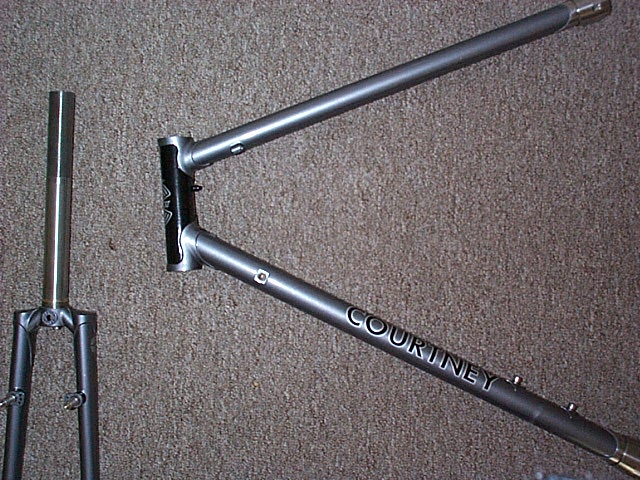

The courtney, picture 01071.JPG
The courtney, picture 01072.JPG

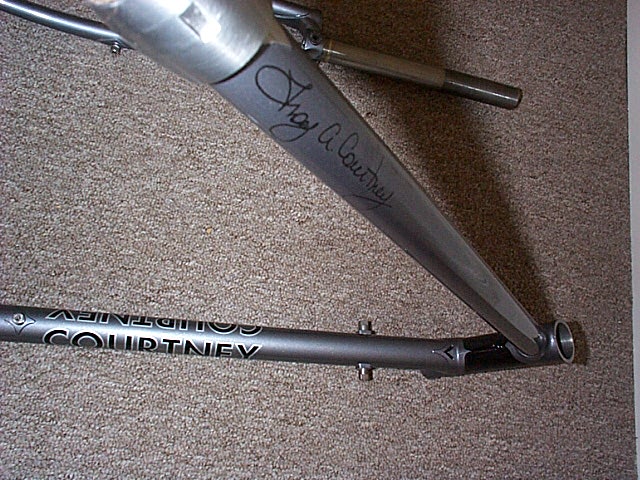

The courtney, picture 01073.JPG

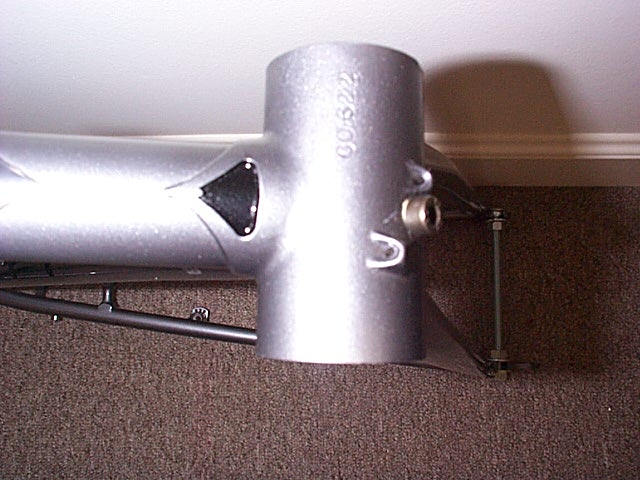

The courtney, picture 01074.JPG

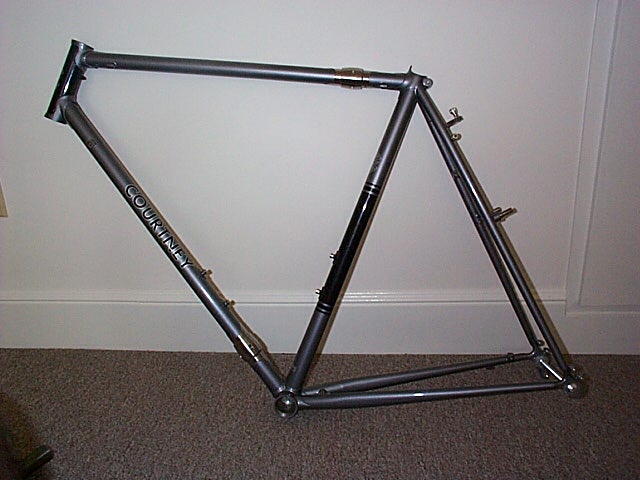

The courtney, picture 01075.JPG
